EMD D29 DC Traction Motor 426V 450A for Locomotives
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HTR |
| 最小注文数量 | 10pcs |
| 価格 | 交渉可能 |
| パッケージの詳細 | カートン箱、木の場合は、によって要求する |
| 受渡し時間 | 15-50日はQTYによって、決まる |
| 支払条件 | L/C、T/T、Western Union、PayPal |
| 供給の能力 | 1,000 PC/月 |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| タイプ | 保護されたタイプ | 義務 | 連続 |
|---|---|---|---|
| 定格電圧 | 426V | 定格電流 | 450A |
| 定格速度 | 366 r/min | 最大電圧 | 1050V |
| 最大電流 | 630A | 最高速度 | 2210 r/min |
| 励起方法 | 直列励磁 | 断熱クラス | h |
| 換気方法 | 強制外部換気 | 冷却空気容量 | 65m³/min |
| ハイライト | EMD D29 DC traction motor,426V locomotive traction motor,450A DC motor for locomotives |
||
製品の説明

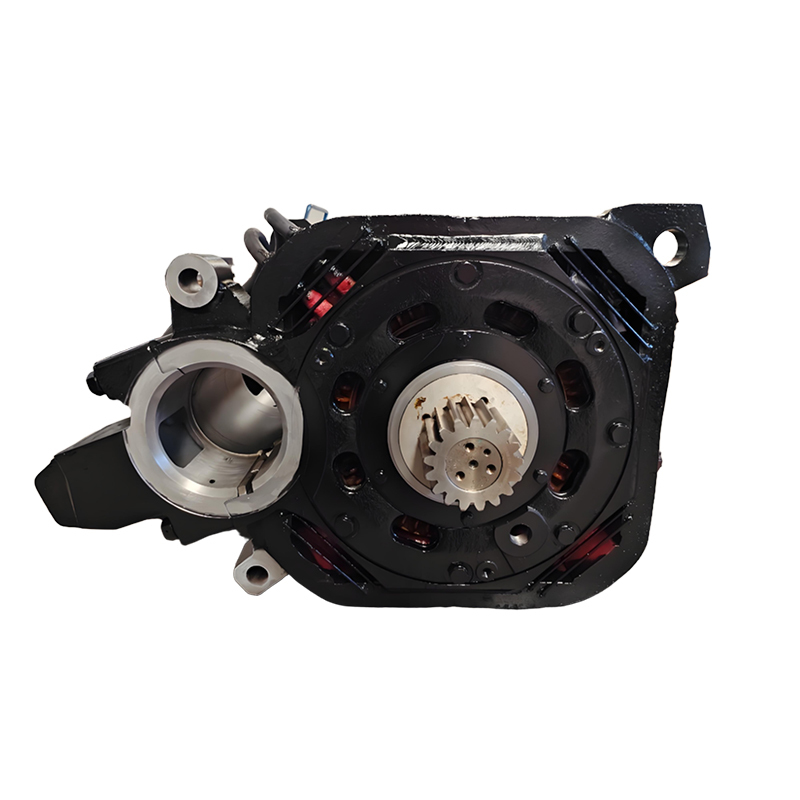

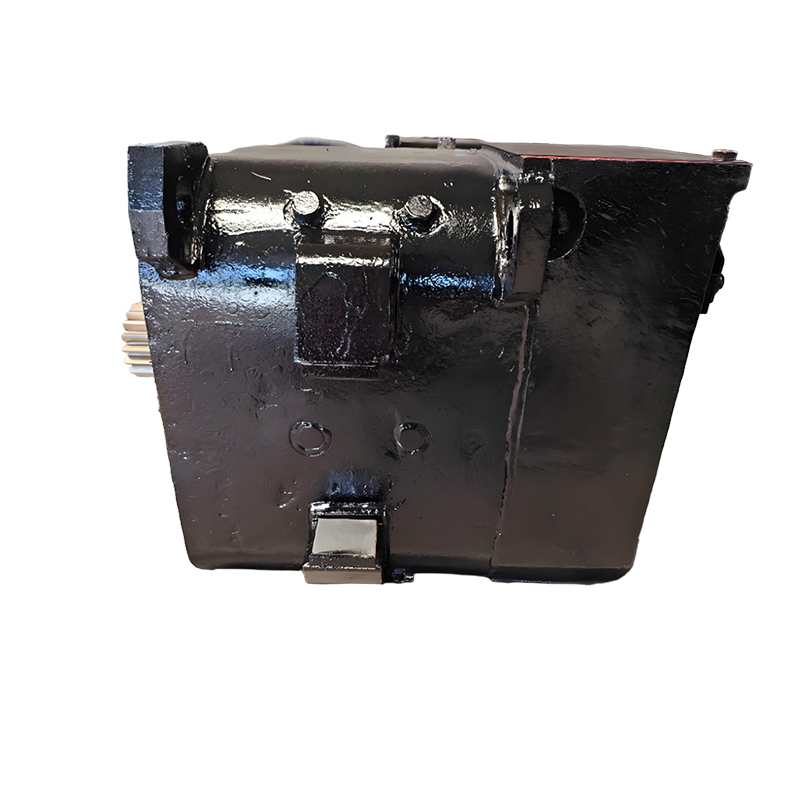

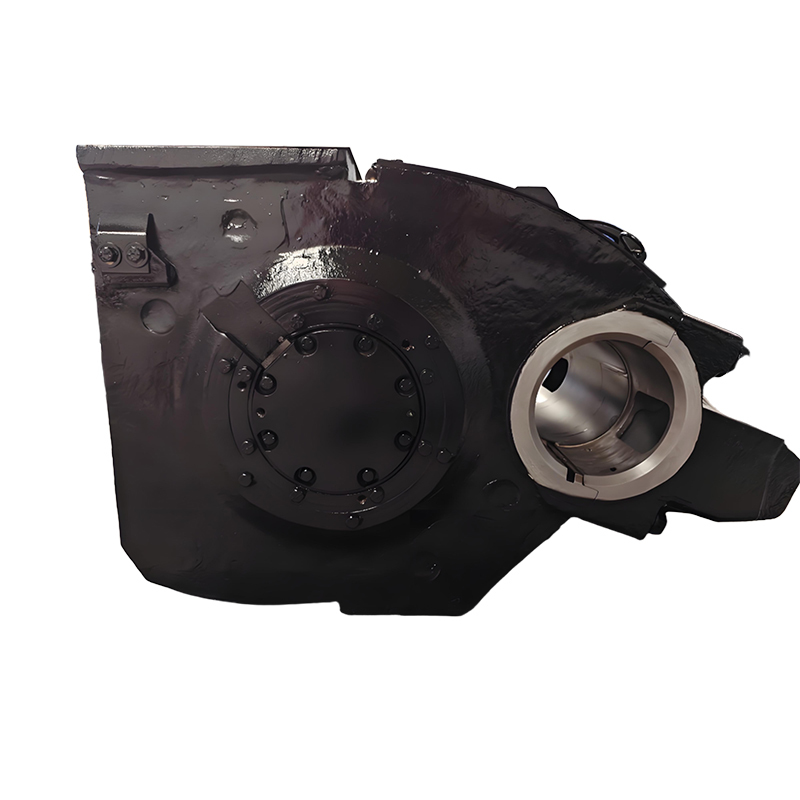

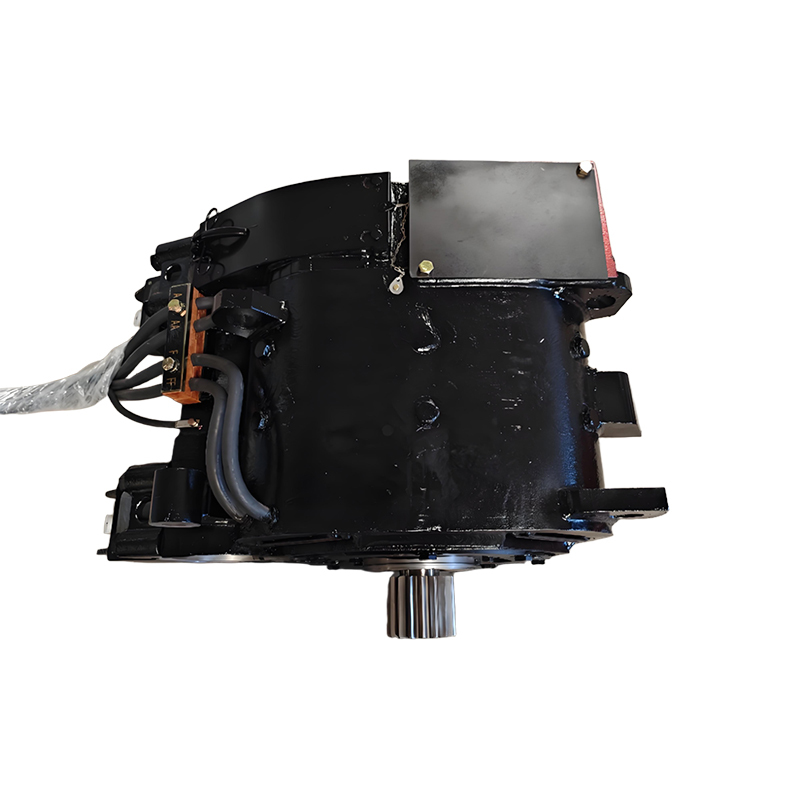

DC Traction Motor EMD D29
The D29 traction motor features a compact structure and relatively light weight, making it ideal for narrow-gauge locomotives with limited space while maintaining high traction performance. Its design shares similarities with the D31 motor, with some interchangeable components including the armature, though differences exist in insulation, winding, and bearings.
Renowned for its reliability and maintainability, the D29 can be overhauled to extend service life through processes such as rewinding main field coils, replacing bearings, and renewing insulation materials. This motor was widely equipped on EMD export narrow-gauge locomotives including the G18 and DDM45 models, establishing itself as a classic in international railway traction systems.
Product Specifications
| Product Performance | Reference Value |
|---|---|
| Type | Protected Type |
| Duty | Continuous |
| Rated Voltage | 426 V |
| Rated Current | 450 A |
| Rated Speed | 366 r/min |
| Maximum Voltage | 1050 V |
| Maximum Current | 630 A |
| Maximum Speed | 2210 r/min |
| Excitation Method | Series excitation |
| Insulation Class | H |
| Ventilation Method | Forced external ventilation |
| Cooling Air Volume | 65 m³/min |
Operating Conditions
- Altitude not exceeding 1200 m
- Ambient air temperature between -25°C to 55°C (when above 40°C, for every 4°C increase, rated current shall be reduced by 1%)
- In the most humid month, monthly average maximum relative humidity shall not exceed 90% (with same month's average minimum temperature not higher than 25°C)
Temperature Rise Limits
When tested at 426 V, 478 A under full field excitation from cold state for one-hour temperature rise test, and during long-duration tests at rated conditions, the temperature rise limits are:
| Component | Insulation Class | Measurement Method | Temperature Rise Limit (K) |
|---|---|---|---|
| Armature Winding | H | Resistance Method | 160 |
| Main Field Winding | H | Resistance Method | 180 |
| Commutating Winding | H | Resistance Method | 180 |
| Commutator | H | Thermometer Method | 120 |
Note: When cooling air temperature at motor inlet is 40°C or below, the temperature rise limit of the armature bearing is 95°C.
