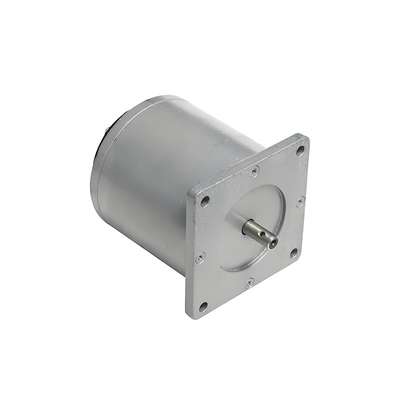

Railway Vehicle Diesel Locomotives HTS-1 and HTS-1A Rotational Speed Sensors
| Place of Origin | China |
|---|---|
| ブランド名 | HTR |
| Model Number | HTS-1 and HTS-1A |
| Minimum Order Quantity | 10pcs |
| 価格 | 交渉可能 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| Output Voltage | AC30V ±0.5V at 5000 r/min | Measurement Range | 300–5000 r/min |
|---|---|---|---|
| Output Waveform | Approximately sinusoidal | Three-phase Voltage Balance | ≥ 93% |
| Insulation Resistance | > 20 MΩ | Dielectric Strength | 1000V/S |
| Weight | Approx. 0.5 kg | Operating Temperature | -20°C to +60°C |
| Relative Humidity | < 85% | ||
| ハイライト | HTS-1 Rotational Speed Sensors,HTS-1A Rotational Speed Sensors,Railway Vehicle Rotational Speed Sensors |
||
製品の説明
Products Description
The HTS-1 Speed Sensor is a widely used device on diesel locomotives. During operation, it connects to the target shaft via a coupling. As the locomotive's diesel engine drives the sensor to rotate, it generates a three-phase AC voltage signal with a specific frequency. This signal is used by various systems such as the locomotive’s electronic tachometer, dynamic braking system, and monitoring devices. The HTS-1 sensor is known for its compact design, sleek appearance, and reliable, safe, and convenient operation.
Specification
|
Item |
Specification |
|
Output Voltage |
AC30V ±0.5V at 5000 r/min |
|
Measurement Range |
300–5000 r/min |
|
Output Waveform |
Approximately sinusoidal |
|
Three-phase |
≥ 93% |
|
Insulation Resistance |
> 20 MΩ |
|
Dielectric Strength |
1000V/S |
|
Weight |
Approx. 0.5 kg |
|
Operating Temperature |
-20°C to +60°C |
|
Relative Humidity |
< 85% |
|
Operating Mode |
Continuous |
|
Connection Method |
Two terminals for output; |
