Locomotive Instrument HTS2 Dual-needle Network Pressure Gauge
| Place of Origin | China |
|---|---|
| ブランド名 | HTR |
| Model Number | HTS2 |
| Minimum Order Quantity | 10pcs |
| 価格 | 交渉可能 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| Accuracy Class | Class 1.5 (Class 2.5 when used with sensors) | Operating Environment | -20°C to +50°C |
|---|---|---|---|
| Relative Humidity | ≤ 95% | Damping Time | < 4 seconds |
| External Magnetic Field Resistance | 4 kA/m | Vibration Resistance | 30 m/s² |
| Illumination Power Supply | DC 24V or DC 110V | Protection Type | Dustproof |
| Weight | Approx. 1 kg | Dimensions | 64 mm (W) × 146 mm (H) × 152 mm (D) |
| ハイライト | Locomotive Network Pressure Gauge,Dual-needle Network Pressure Gauge,HTS2 Network Pressure Gauge |
||
製品の説明
Products Description

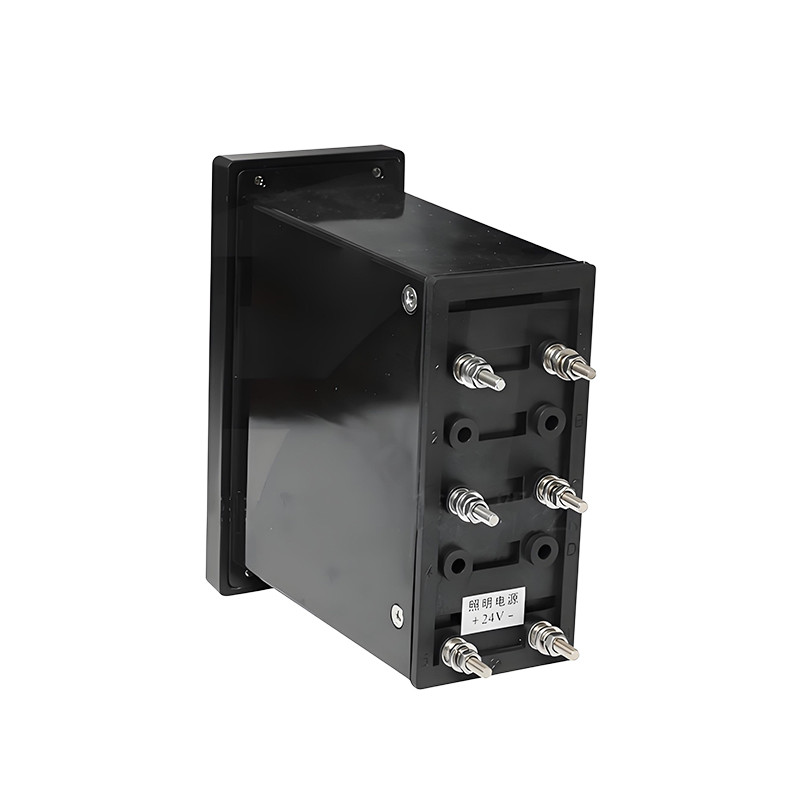

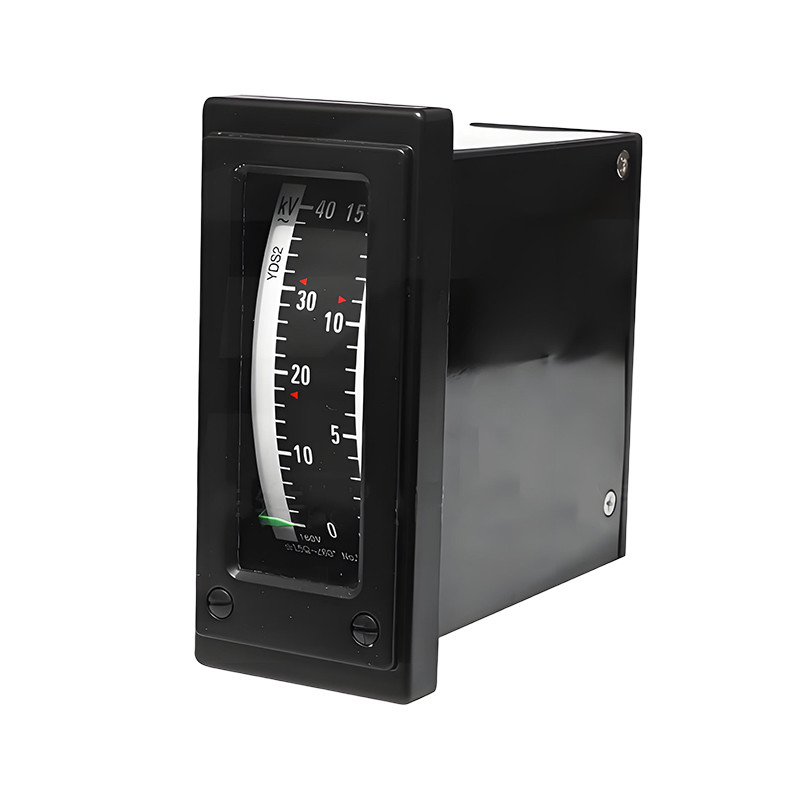

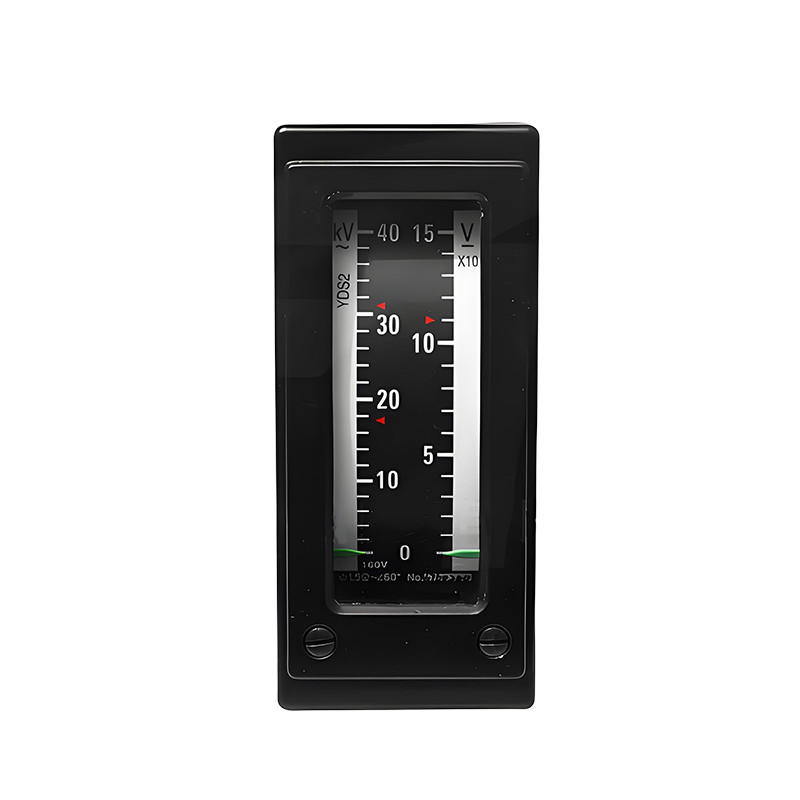

The HTS2 Dual-Needle Locomotive Instrument is a panel-mounted analog gauge designed for diesel-electric locomotives. It integrates multiple functions—such as current, voltage, sp eed, temperature, and pressure measurement—into one compact, reliable unit. Built with a magnetoelectric mechanism and a durable phenolic resin housing, it offers high accuracy, good linearity, and strong resistance to shock, vibration, and external magnetic fields. The instrument features reverse polarity protection, soft lighting, and long service life, making it ideal for harsh railway environments.
Specification
|
Item |
Specification |
|
Accuracy Class |
Class 1.5 (Class 2.5 when used with sensors) |
|
Operating Environment |
-20°C to +50°C |
|
Relative Humidity |
≤ 95% |
|
Damping Time |
< 4 seconds |
|
External Magnetic |
4 kA/m |
|
Vibration Resistance |
30 m/s² |
|
Illumination Power |
DC 24V or DC 110V |
|
Protection Type |
Dustproof |
|
Weight |
Approx. 1 kg |
|
Dimensions |
64 mm (W) × 146 mm (H) × 152 mm (D) |
