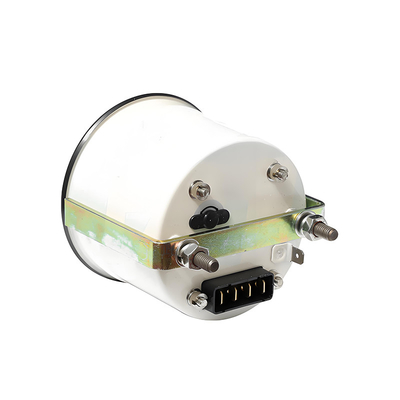

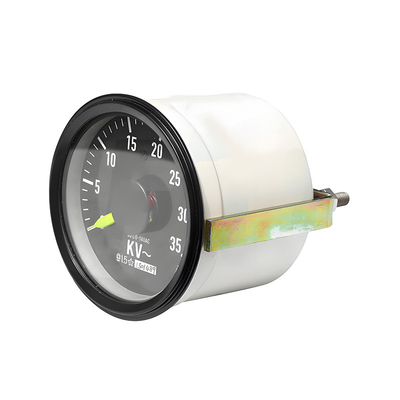

Railway Vehicle Electric Locomotives HTS8/9a Single-needle Catenary Voltage Meter
| Place of Origin | China |
|---|---|
| ブランド名 | HTR |
| Model Number | HTS8/9a |
| Minimum Order Quantity | 10pcs |
| 価格 | 交渉可能 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| Accuracy | ±1.5% | Internal Illumination | LED lighting, 24VDC or 110VDC |
|---|---|---|---|
| Operating Environment | -25°C to +50°C, relative humidity ≤ 95% | Insulation Strength | 1000V, 50Hz sinusoidal AC, duration 1 minute |
| Vibration Resistance | Category 1, Class B | Protection Rating | Front panel: IP54; Connector: IP40 |
| Weight | Not more than 0.8 kg | ||
| ハイライト | HTS8/9a Catenary Voltage Meter,Railway Vehicle Catenary Voltage Meter,Single-needle Catenary Voltage Meter |
||
製品の説明
Products Description

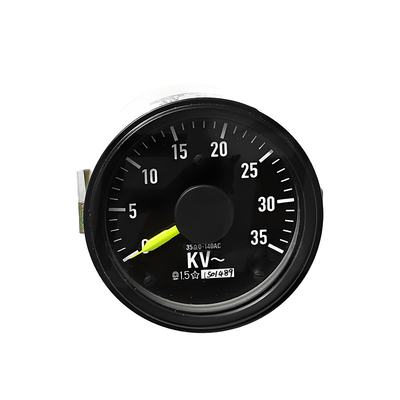

The HTS8/9a is a single-needle analog voltmeter designed for real-time monitoring of high-voltage overhead catenary systems in electric locomotives and EMUs. Specifically rated for -35kV applications, this instrument accurately displays the voltage of the traction power network. It features a modular design, high insulation performance, and strong resistance to vibration and electromagnetic interference. Equipped with a backlit dial (LED illumination optional), the HTS8/9a provides clear visibility under varying lighting conditions. Its robust structure and long service life make it suitable for harsh railway environments, ensuring operational safety and reliable voltage indication.
Specification
|
Item |
Specification |
|
Accuracy |
±1.5% |
|
Internal Illumination |
LED lighting, 24VDC or 110VDC |
|
Operating Environment |
-25°C to +50°C, relative humidity not exceeding 95% |
|
Insulation Strength |
1000V, 50Hz sinusoidal AC, duration 1 minute |
|
Vibration Resistance |
Category 1, Class B (in accordance with TB/T 3058) |
|
Protection Rating |
Front panel: IP54; Connector: IP40 |
|
Weight |
Not more than 0.8 kg |
|
Connector |
0.8 × 6.3 mm plug-in terminal |
