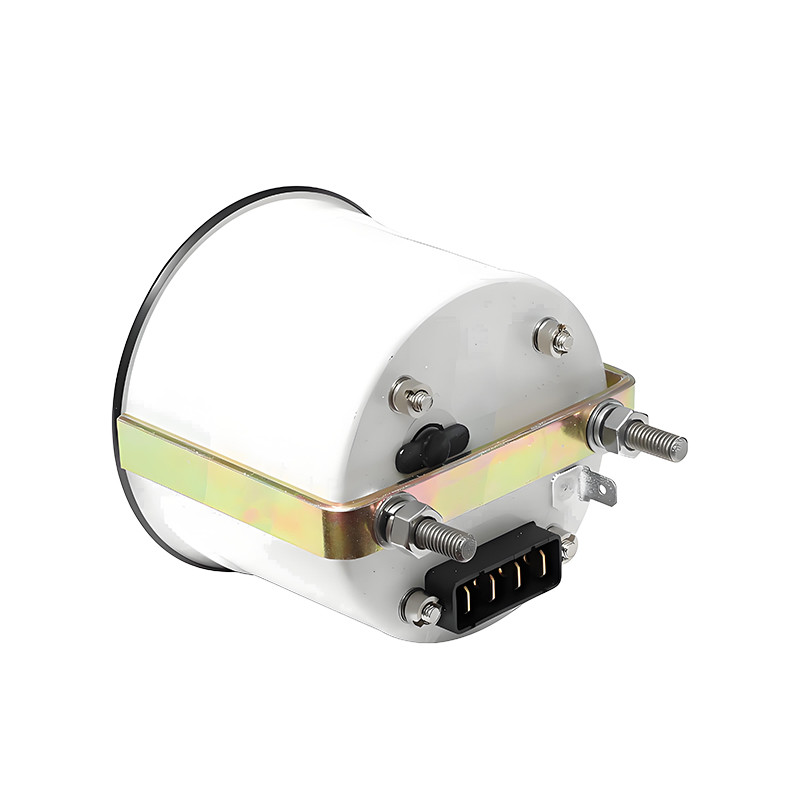

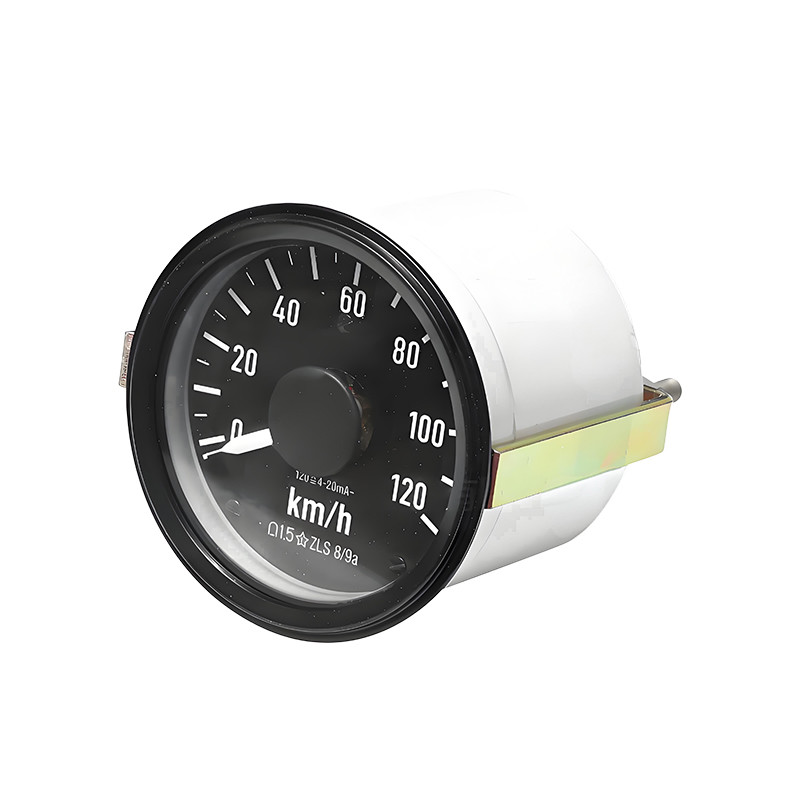

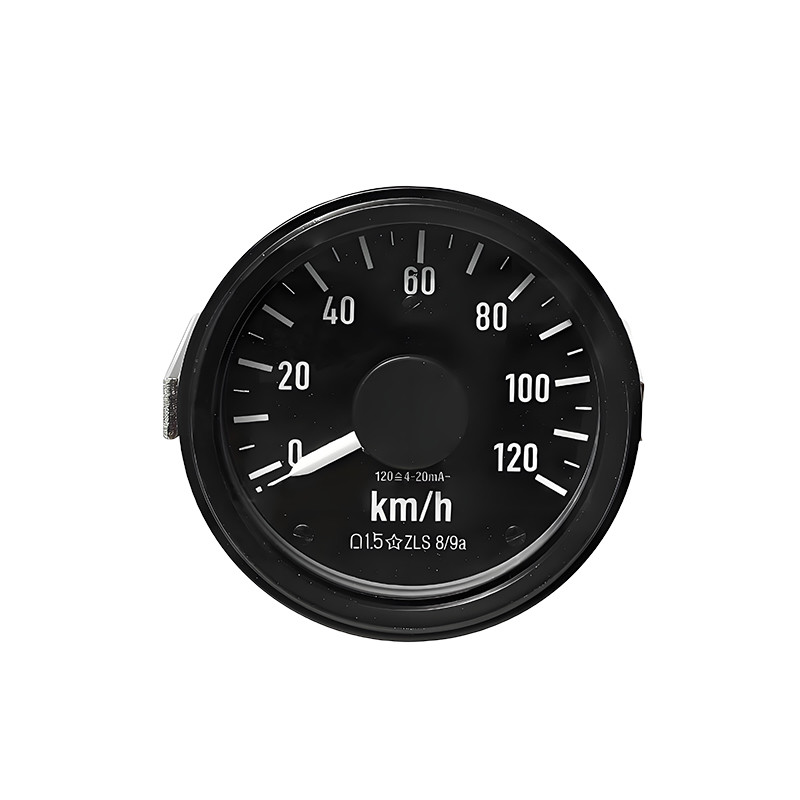

Railway Vehicle Locomotive Instrumentation HTS8/9a Single Needle Speedometer
| Place of Origin | China |
|---|---|
| ブランド名 | HTR |
| Model Number | HTS8/9a |
| Minimum Order Quantity | 10pcs |
| 価格 | 交渉可能 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| Accuracy | ±1.5% | Internal Illumination | LED lighting, 24VDC or 110VDC |
|---|---|---|---|
| Operating Environment | -25°C to +50°C, relative humidity not exceeding 95% | Insulation Strength | 1000V, 50Hz AC, duration 1 minute |
| Vibration Resistance | Class B | Dielectric Strength | 1500V / 50Hz, duration 1 minute |
| ハイライト | HTS8/9a Single needle Speedometer,Single needle Speedometer |
||
製品の説明
Products Description
The speedometer consists of a movement mechanism, odometer, and casing. It features a robust structure, excellent shock resistance, and long service life. This instrument is used to indicate locomotive or EMU operating parameters such as speed, voltage, and current. It is widely applied across various metro and urban rail transit systems.
Specification
|
Item |
Specification |
|
Accuracy |
±1.5% |
|
Internal Illumination |
LED lighting, 24VDC or 110VDC |
|
Operating Environment |
-25°C to +50°C, relative humidity not exceeding 95% |
|
Insulation Strength |
1000V, 50Hz AC, duration 1 minute |
|
Vibration Resistance |
Class B (TB/T3058) |
|
Protection Rating |
Front panel: IP54, Connector: IP40 |
|
Weight |
Not more than 0.8 kg |
|
Connector |
0.8 × 6.3 plug-in terminal |
