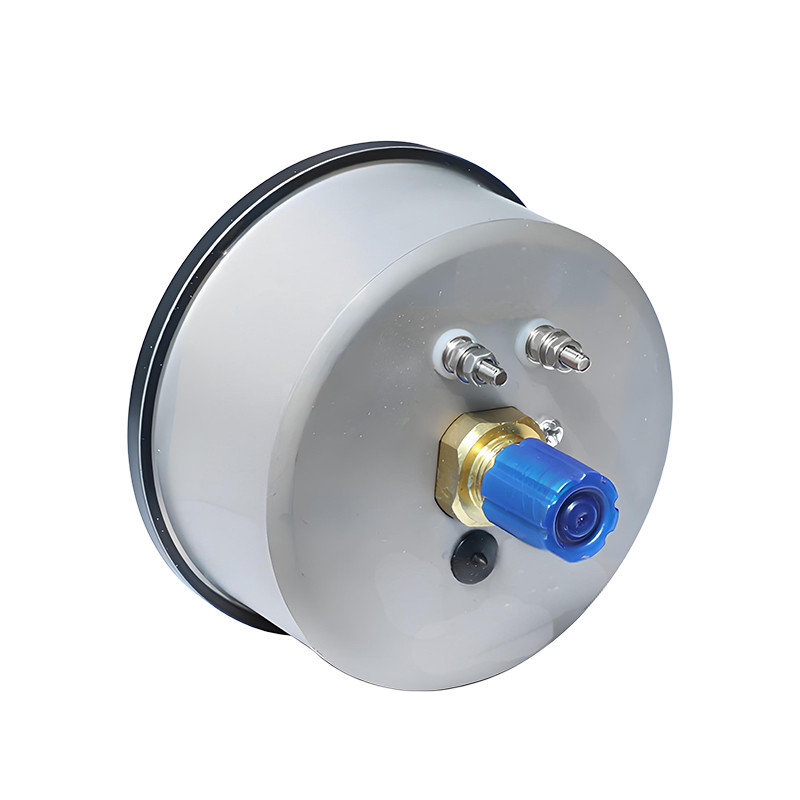

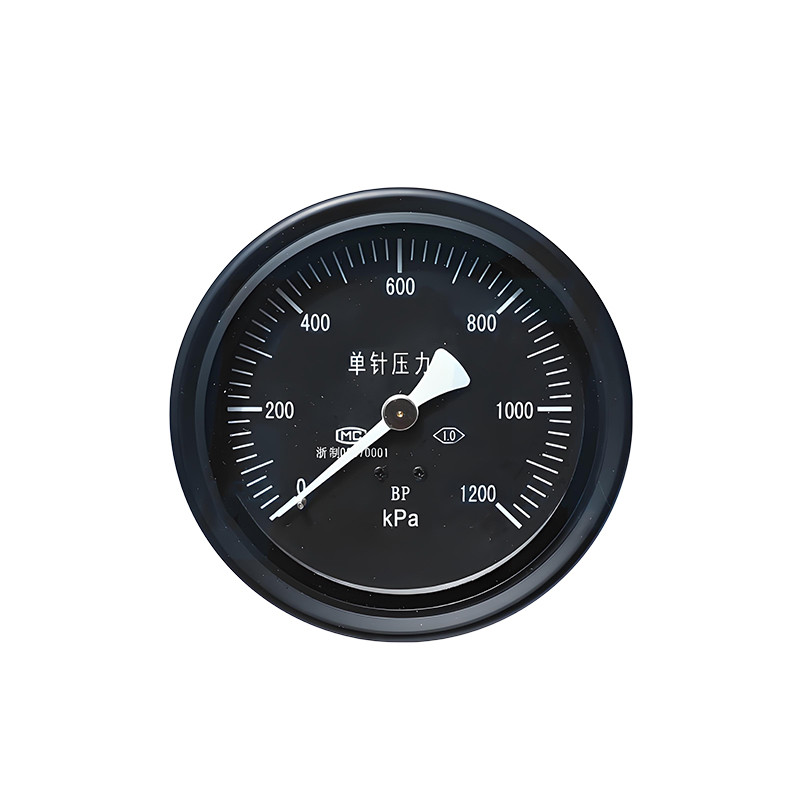

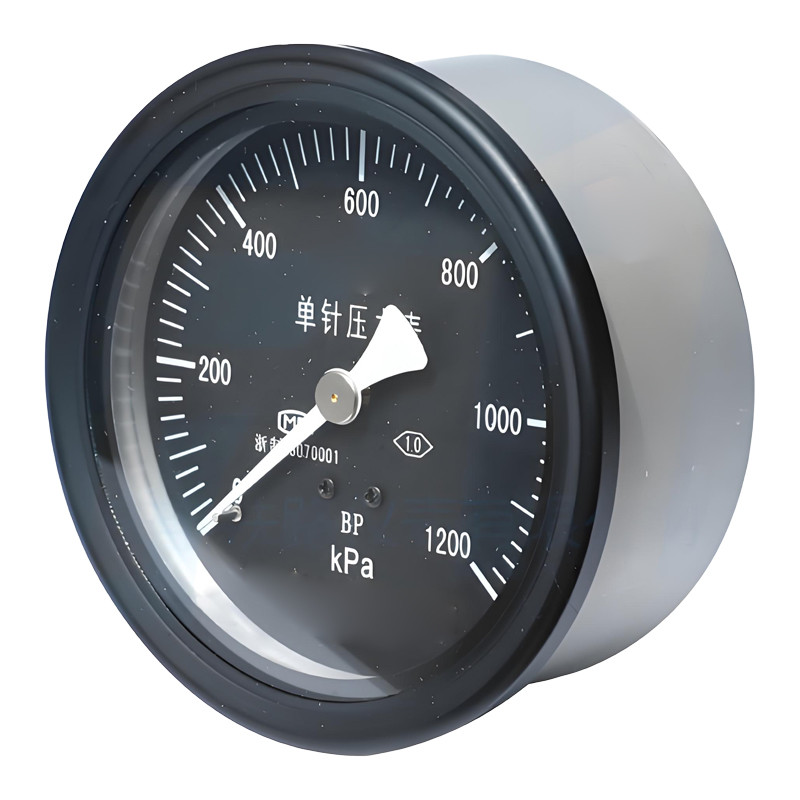

HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
| Place of Origin | China |
|---|---|
| ブランド名 | HTR |
| Model Number | HTCS100 |
| Minimum Order Quantity | 10pcs |
| 価格 | 交渉可能 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| Measuring Range | 0 ~ 1200 kPa | Accuracy Class | Class 1.0 |
|---|---|---|---|
| Operating Temperature | -40°C to +70°C, with relative humidity not exceeding 95% | Temperature Influence | When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C |
| Illumination Voltage | DC 110V ±20% | Dielectric Strength | 1500V / 50Hz, duration 1 minute |
| ハイライト | Single-needle Pressure Gauge,Locomotive Air Compressors Pressure Gauge,HTCS100 Pressure Gauge |
||
製品の説明
Products Description
The single-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its operating principle is based on the deformation of a Bourdon tube under the action of medium pressure. This deformation is transmitted and amplified through a mechanical linkage, driving the pointer to deflect across the calibrated dial to indicate the measured pressure value.
This pressure gauge features an axial structure and is capable of measuring two identical or different pressures simultaneously. It is equipped with a ring-shaped LED light source positioned at the top of the dial, providing soft illumination that enhances visibility and facilitates observation during nighttime operation.
Specification
|
Item |
Specification |
|
Measuring Range |
0 ~ 1200 kPa |
|
Accuracy Class |
Class 1.0 |
|
Operating Temperature |
-40°C to +70°C, with relative humidity not exceeding 95% |
|
Temperature Influence |
When ambient temperature deviates from 20°C ±5°C, additional error ≤ 0.4%/10°C |
|
Illumination Voltage |
DC 110V ±20% |
|
Dielectric Strength |
1500V / 50Hz, duration 1 minute |
|
Standard Compliance |
Complies with GB/T 1226-2010 (General Pressure Gauge Standard) |
