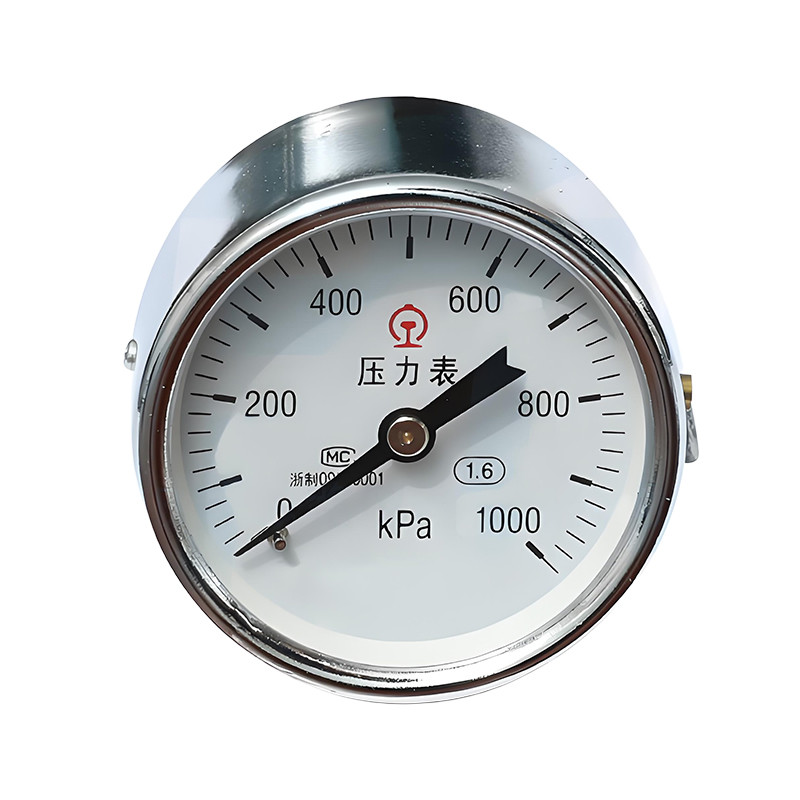

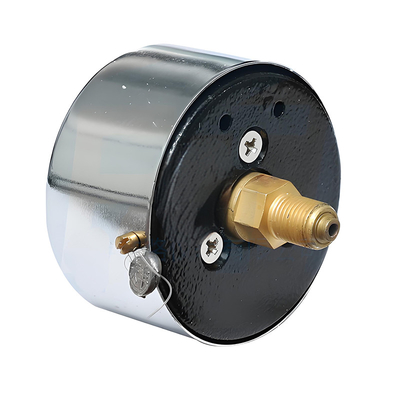

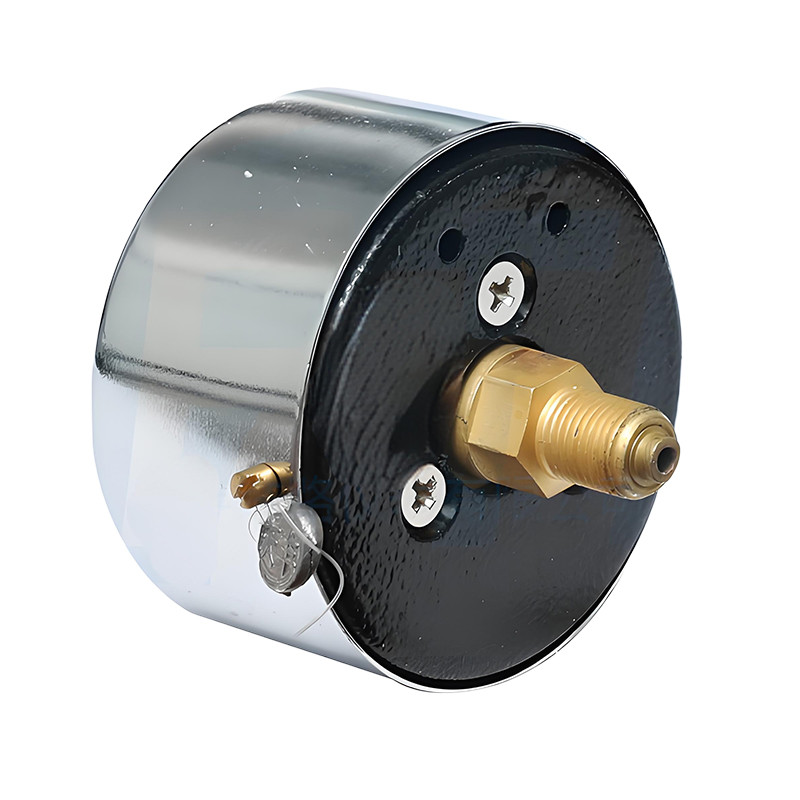

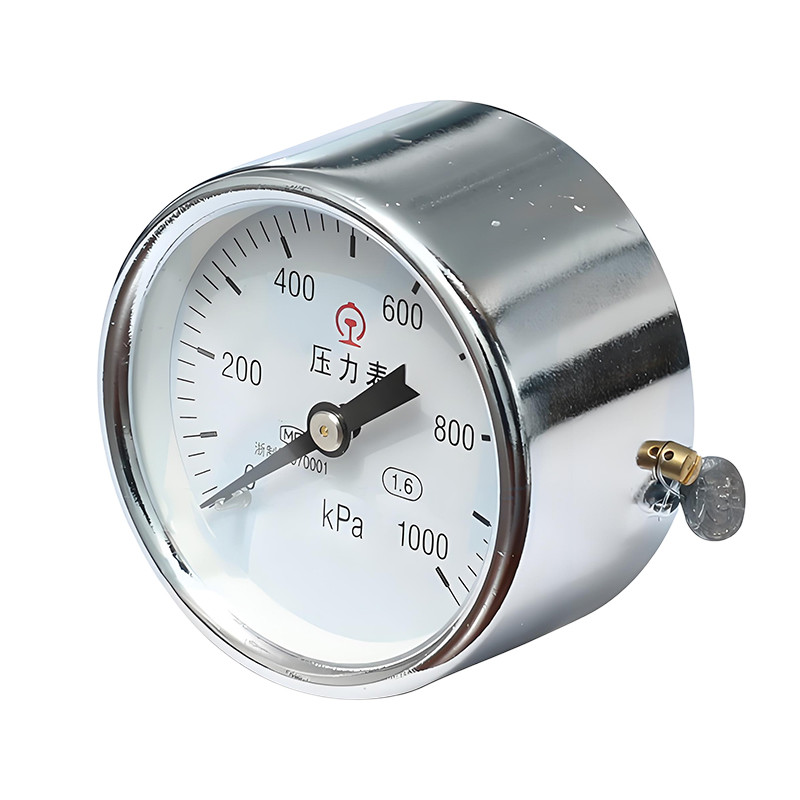

Railway Vehicle Locomotive Instrumentation H60Z Single Needle Pressure Gauge
| Place of Origin | China |
|---|---|
| ブランド名 | HTR |
| Model Number | H60Z |
| Minimum Order Quantity | 10pcs |
| 価格 | 交渉可能 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| Measuring Range | 0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa | Accuracy Class | Class 1.6 |
|---|---|---|---|
| Operating Temperature | -40°C to +70°C, with relative humidity not exceeding 95% | Temperature Influence | When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C |
| Illumination Voltage | DC 24V ±30% / DC 110V ±30% | Insulation Voltage | ≥ AC 500V (1 minute, no breakdown) |
| Dielectric Strength | ≥ AC 1500V / 50Hz (1 minute, no flashover or breakdown) | ||
| ハイライト | H60Z Single-needle Pressure Gauge,Locomotive Instrumentation Single-needle Pressure Gauge,Railway Vehicle Locomotive Instrumentation |
||
製品の説明
Products Description
The single-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its operating principle is based on the deformation of a Bourdon tube under the action of the medium's pressure. This deformation is transmitted and amplified through a mechanical linkage, driving the pointer to deflect across the dial scale and thereby indicating the measured pressure value.
Specification
|
Item |
Specification |
|
Measuring Range |
0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa |
|
Accuracy Class |
Class 1.6 |
|
Operating Temperature |
-40°C to +70°C, with relative humidity not exceeding 95% |
|
Temperature Influence |
When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C |
|
Illumination Voltage |
DC 24V ±30% / DC 110V ±30% |
|
Insulation Voltage |
≥ AC 500V (1 minute, no breakdown) |
|
Dielectric Strength |
≥ AC 1500V / 50Hz (1 minute, no flashover or breakdown) |
|
Standard Compliance |
The pressure gauge complies with GB/T 1226-2010 [General Pressure Gauge Standard] |
