Train Locomotive Instrumentation HTY1 Instrumentation Combination Module
| Place of Origin | China |
|---|---|
| ブランド名 | HTR |
| Model Number | HTY1 |
| Minimum Order Quantity | 10pcs |
| 価格 | 交渉可能 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| Range | 0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa | Accuracy | Class 1.0, Class 1.6 |
|---|---|---|---|
| Minimum Scale | 20 kPa | Dial Plate | Black background with white markings or white background with black markings |
| Pointers | Dual-needle: red and black | Illumination Method | High-reliability, high-brightness backlit dual-electrode lamp |
| Operating Voltage | DC 24V ±30%, DC 110V ±30% | Mounting Method | Axial panel mounting |
| ハイライト | HTY1 Instrumentation Combination Module,Locomotive Instrumentation Combination Module,Train Locomotive Instrumentation Combination Module |
||
製品の説明
Products Description

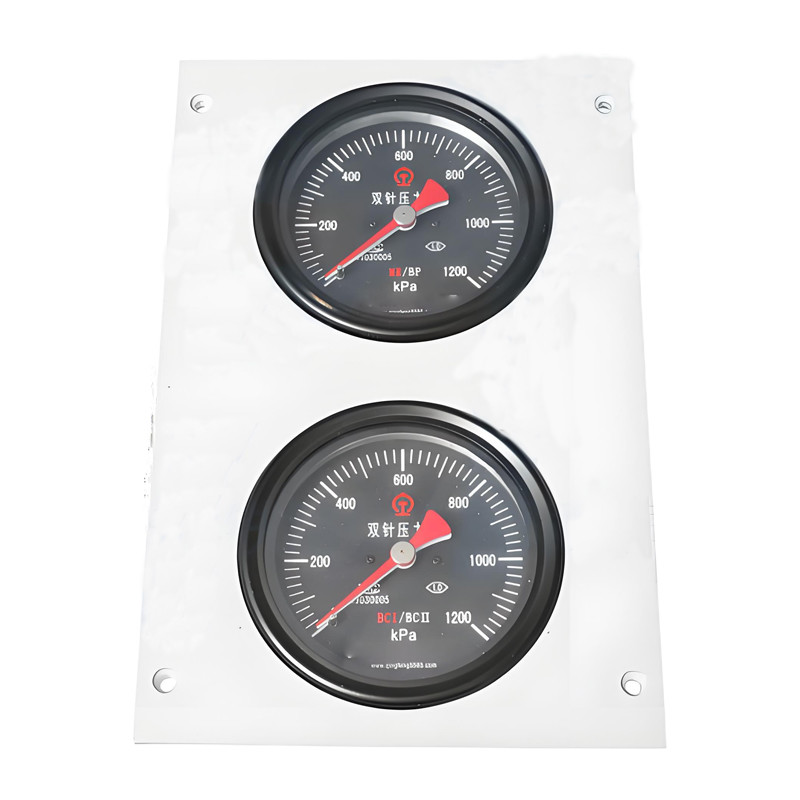

The multifunctional instrumentation combination module, composed of a locomotive dual-needle pressure gauge, adopts a modular design and is mounted on the locomotive control console. It serves as a vital interface for delivering real-time train operation parameters, equipment status, and other essential information to the driver.
Specification
|
Item |
Specification |
|
Range |
0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa |
|
Accuracy |
Class 1.0, Class 1.6 (in accordance with GB/T 1226-2010 standard) |
|
Minimum Scale |
20 kPa |
|
Dial Plate |
Black background with white markings or white background with black markings |
|
Pointers |
Dual-needle: red and black (black on top, red on bottom) |
|
Illumination Method |
High-reliability, high-brightness backlit dual-electrode lamp |
|
Operating Voltage |
DC 24V ±30%, DC 110V ±30% |
|
Mounting Method |
Axial panel mounting |
