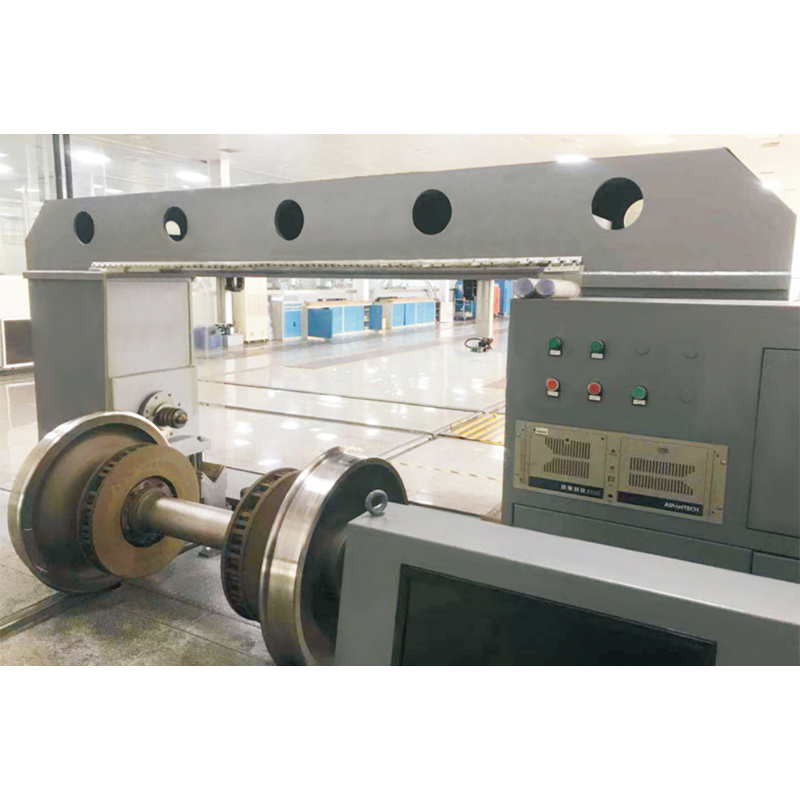

HTR2024-KC Automatic Laser Wheelset Inspection Machine
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HTR |
| 証明 | EN50155, EN45545, GB/T 25119, etc. |
| モデル番号 | HTR2024-KC |
| 最小注文数量 | 100個 |
| 価格 | 交渉可能 |
| パッケージの詳細 | カートン箱、木の場合は、によって要求する |
| 受渡し時間 | 15-50日はQTYによって、決まる |
| 支払条件 | L/C、T/T、ウェスタンユニオン、ペイパル |
| 供給の能力 | 1,000 PC/月 |
商品の詳細
| ハイライト | automatic laser wheelset inspection machine,railway wheelset inspection equipment,laser wheelset inspection system |
||
|---|---|---|---|
製品の説明
Product Overview
The HTR2024-KC Automatic Laser Wheelset Inspection Machine for Passenger Coaches is a sophisticated system comprising a main frame, a wheelset pre- inspection station, and dedicated modules for thrusting, lifting, rotation, and precision measurement. The assembly is further integrated with a hydraulic system, an electrical control unit, and a high-performance microcomputer for data acquisition and processing. Characterized by high measurement accuracy, the equipment fully complies with all relevant industry standards.
Main Product Features
· Automatically measures corresponding technical parameters, performs conformity judgment and generates records in accordance with the requirements
specified in TG/CL 206-2013 Rules for Assembly, Maintenance and Management of Railway Passenger Car Wheelsets and Axles.
· Equipped with measurement item selection function. Operators can select measurement parameters as required. After selection, the system performs
automatic measurement with intelligent prompts. It is easy to operate, provides detailed work prompts and wizards, and can judge whether the measurement
results are qualified based on the preset limit values.
· Has intelligent automatic calibration and self-calibration functions.
· The operation interface is in Chinese, conforms to domestic operation habits, and has good human-machine interaction function.
· Adopts world-leading high-precision displacement sensors and non-contact measurement method, which will not damage the workpiece.
Main Technical Indicators
|
Detection Parameters |
Measuring Range (mm) |
Maximum Permissible Error (mm) |
Repeatability (mm) |
|
Wheel Diameter |
750 ~ 930 |
-0.3 ~ 0 |
≤0.1 |
|
Flange Height |
24 ~ 38 |
±0.1 |
≤0.05 |
|
Flange Thickness |
20 ~ 35 |
-0.2 ~ 0 |
≤0.05 |
|
Rim Thickness |
22 ~ 70 |
-0.5 ~ 0 |
≤0.1 |
|
Rim Width |
125 ~ 145 |
-0.5 ~ 0 |
≤0.1 |
|
Wheelset Inner Distance |
1345 ~ 1365 |
±0.2 |
≤0.1 |
|
Vertical Wear |
-2 ~ 2 |
-0.2 ~ 0 |
≤0.05 |
|
Brake Disc Center Distance |
700 ~ 1000 |
±0.4 |
≤0.1 |
|
Brake Disc Wear |
0 ~ 50 |
±0.2 |
≤0.1 |
