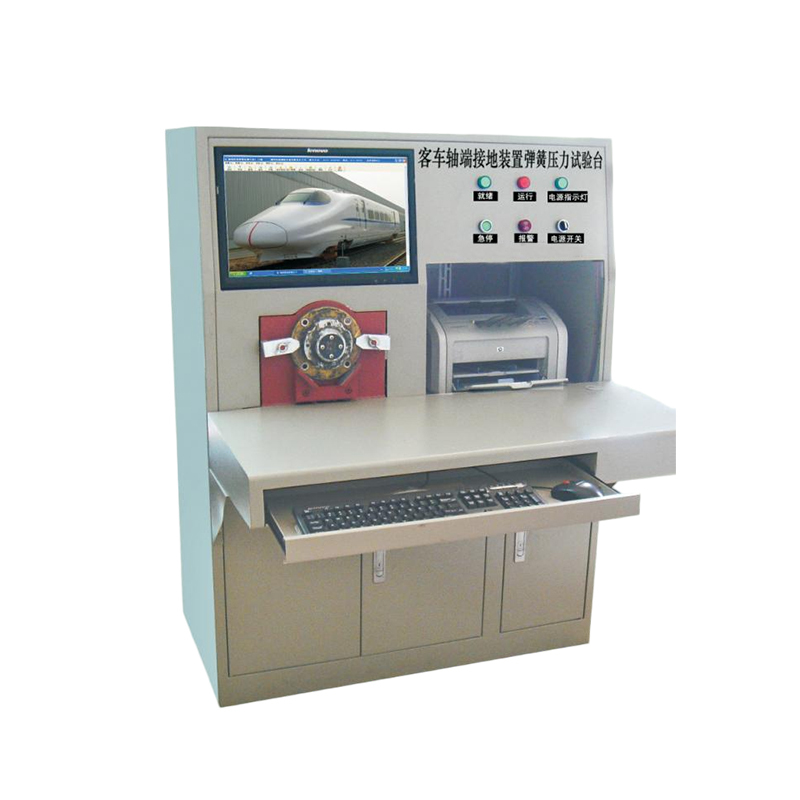

HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HTR |
| 証明 | EN50155, EN45545, GB/T 25119, etc. |
| モデル番号 | HTR2820 |
| 最小注文数量 | 100個 |
| 価格 | 交渉可能 |
| パッケージの詳細 | カートン箱、木の場合は、によって要求する |
| 受渡し時間 | 15-50日はQTYによって、決まる |
| 支払条件 | L/C、T/T、ウェスタンユニオン、ペイパル |
| 供給の能力 | 1,000 PC/月 |
商品の詳細
| 測定範囲 | 0kPa～110kPa | 測定時間 | 45秒（クランプ含む） |
|---|---|---|---|
| スプリングの圧縮距離 | 25mm | 圧力測定の正確さ | ±1.5kPa |
| ハイライト | Passenger coach grounding device test bench,Railway axle-end spring pressure tester,HTR2820 grounding device test equipment |
||
製品の説明
Product Overview
The HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench is a specialized inspection system that integrates pressure sensors and microcomputer control technology. It is specifically designed to detect the spring pressure and average value deviation of the four carbon brushes within a grounding assembly.

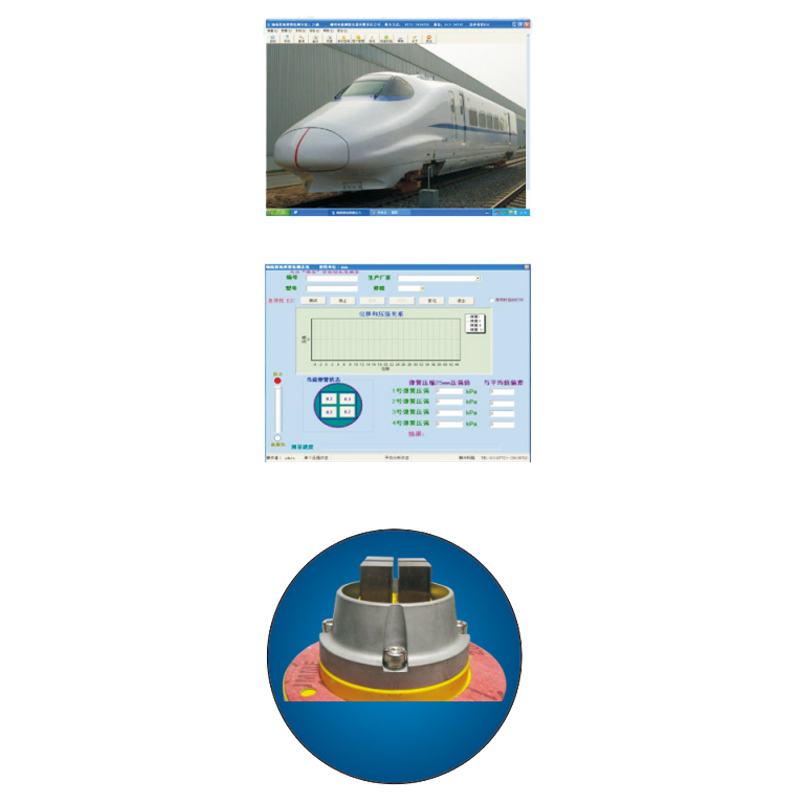

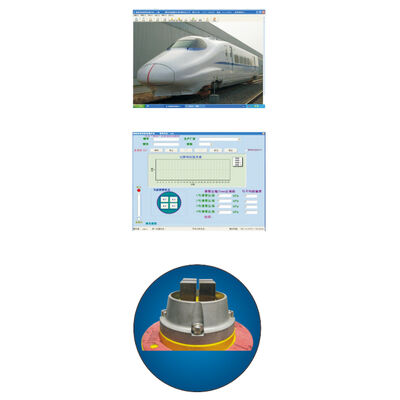

The device can simultaneously measure all four spring pressures and their deviations in a single test cycle. By utilizing system software for comprehensive data analysis, it can accurately identify jamming or mechanical binding within the grounding device.
Main Product Features
The device can simultaneously measure all four spring pressures and their deviations in a single test cycle. By utilizing system software for comprehensive data analysis, it can accurately identify jamming or mechanical binding within the grounding device.
Main Product Features
1. This test bench can simultaneously detect 1 grounding body and 4 carbon brush springs, which is unique among domestic similar products, and its detection efficiency is 4 times that of similar products.
2. It features high accuracy, fast measurement speed, and supports data query, printing, storage and real-time transmission to the KMIS system.
3. It can accurately detect and judge the jamming condition of the grounding device.
Main Technical Indicators
| Measuring Range | 0 kPa ~ 110 kPa |
| Measurement Time | 45 s (including clamping) |
| Spring Compression Distance | 25 mm |
| Pressure Measurement Accuracy | ±1.5 kPa |
