ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force
| 起源の場所 | 中国のチョンキン |
|---|---|
| ブランド名 | XRD |
| 最小注文数量 | 2 |
| 価格 | $1,370-1,400 |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| パワー電圧 | 3相AC 380V/50Hz | ストローク | 220/170/150mm |
|---|---|---|---|
| 評価されたスローフォース | 2.5 kN -4.5 kN | トレーアブルな力 | 28±2kn |
| 投げる時間 | ≤ 8s | 現在の仕事 | ≤2.0A |
| シングルライン抵抗 | ≤54Ω | 絶縁抵抗 | >25mΩ |
| 断熱電圧に耐える | 50Hz | 大気圧 | ≥70kpa（高度3000mを超えない） |
| 周囲温度 | -40℃～ +70℃ | 相対湿度 | ≤90% ((25°C) |
| サービスライフ | 運動を投げる100万回（または15年） | 重さ | 140kg |
| ハイライト | ZDJ9 railway electric switch machine,380V railway track switch,2.5-4.5 kN force switch machine |
||
製品の説明
Excellent Performance Railway ZD9/ZDJ9 Series Electric Switch Machine
Product Attributes
| Attribute | Value |
|---|---|
| Purpose | for retrofit/upgrade |
| Condition | New |
| Type | Electric Switch Machine |
| Material | Steel |
| Dimensions (L x W x H) (mm) | Customized |
| Product Name | Electric Switch Machine |
| Power Voltage | Three-phase AC 380V/50Hz |
| Strokes | 220/170/150mm |
| Rated Throwing Force | 2.5 kN - 4.5 kN |
| Trailable Force | 28±2KN |
| Throwing Time | ≤ 8s |
| Work Current | ≤2.0A |
| Single-line Resistance | ≤ 54Ω |
| Insulation Resistance | >25MΩ |
| Insulation Voltage Withstand | 50Hz |

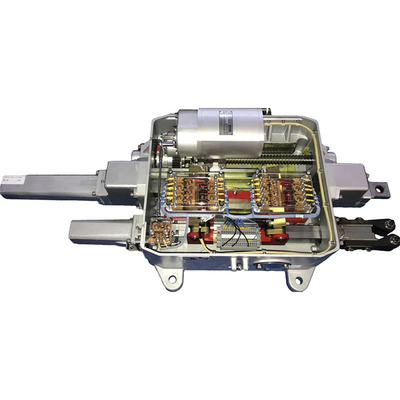

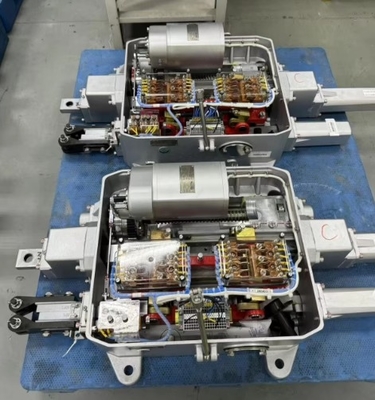

Product Images
Technical Specifications
| Product Performance | Reference Value |
|---|---|
| Power Voltage | Three-phase AC 380V/50Hz |
| Strokes | 220/170/150mm |
| Rated Throwing Force | 2.5 kN - 4.5 kN |
| Trailable Force | 28±2KN |
| Throwing Time | ≤ 8s |
| Work Current | ≤2.0A |
| Single-line Resistance | ≤ 54Ω |
| Insulation Resistance | ＞25MΩ |
| Insulation Voltage Withstand | 50Hz |
| Protection Class | IP54-IP67 |
| Atmospheric Pressure | ≥70KPa (altitude not exceeding 3000m) |
| Ambient Temperature | -40℃～ +70℃ |
| Relative Humidity | ≤90%（25℃） |
| Service Life | The point machine meets the requirement of 1 million times of throwing movement (or 15 years) under the condition of regular maintenance |
| Weight | The whole machine weight about 140kg |
Product Description

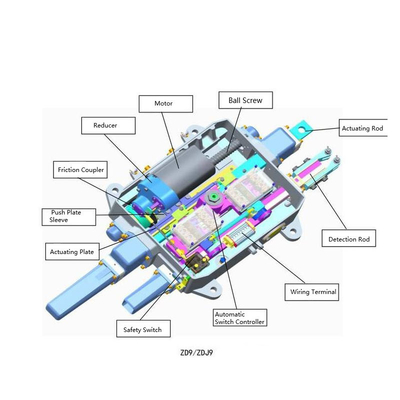

ZDJ9 series switch point machines are suitable for the setting, locking and indication of various railway switches. It can be used by single machine or multiple machines. It can be used for an internal-locking switch or an external-locking switch. ZDJ9 series point machines only refer to the structure and accessories installed in the housing which can complete the action of throw bar, pull-in conversion and lock, excluding installation device. Installation device is a set of parts for installing the point machine and connecting the point machine with the movable parts of the switch.
For the railway with the speed above 120kph, ZD9/ZDJ9 point machine shall be equipped with external locking device.

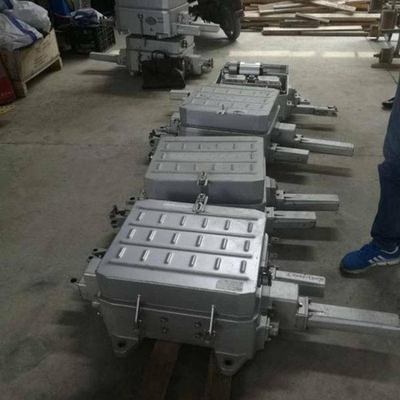

Additional Product Images
