Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels

  • Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
  • Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
  • Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
起源の場所 中国
ブランド名 HTR
証明 IRIS
Minimum Order Quantity 1pc
価格 交渉可能
Packaging Details carton box, wooden case /as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
供給の能力 101000個/月

無料のサンプルとクーポンを私に連絡してください.

WhatsAPPについて:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
Product name EMU Gangway Material Paulin; Aluminium Alloy
Support Method Self-supporting Fire Protection EN45545/BS6853/DIN5510 (optional)
Application EMU High-speed Train Gangway Structure Olive-shaped, Double Bellows with Interior Panels
体重 360kg Load Capacity Complies with AW3 & TB/T 3094-2015 Requirements
メッセージ
製品の説明

Product Description

Product Introduction
The double olive-shaped bellows (inner and outer layers) significantly improve sound and thermal insulation performance. Made of Hypalon rubber composite material, the bellows exhibit enhanced weather resistance and superior mechanical properties. The interior design enhances the aesthetic appeal of the gangway while providing passengers with a more comfortable travel experience.

Product Features
* Enhanced sound and thermal insulation performance
* Self-supporting, double-layer bellows with olive-shaped gangway system
* Features interior panels that align with cabin decor for improved aesthetics

Specification
Product Performance
Reference Values
Gangway Structure
Olive-shaped, double bellows with interior panels
Distance Between Carriage Ends
500mm
Clear Height
≥1900mm
Clear Width
≥1200mm
Service Life
Bellows service life: 12 years; Interior panels: 8-10 years; Metal components: 30 years
Sound Insulation
≥36dB(A)
Thermal Insulation
≤4.0W/(m²·K)
Load Capacity
Complies with AW3 & TB/T 3094-2015 requirements
Fire Protection
DIN5510-3
Weight
360kg

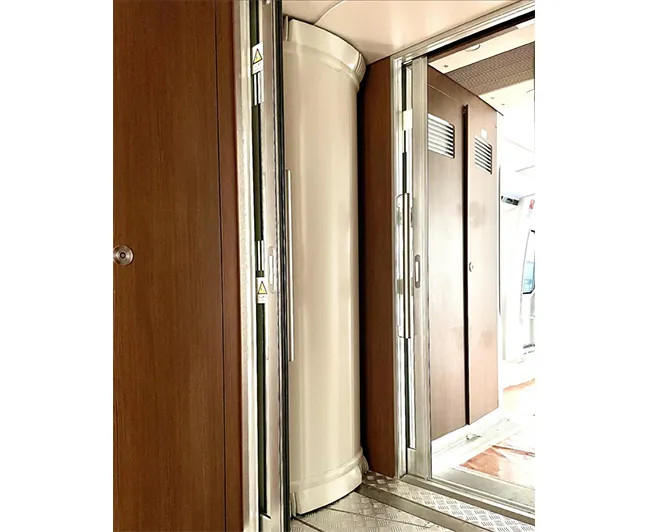

Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels 0

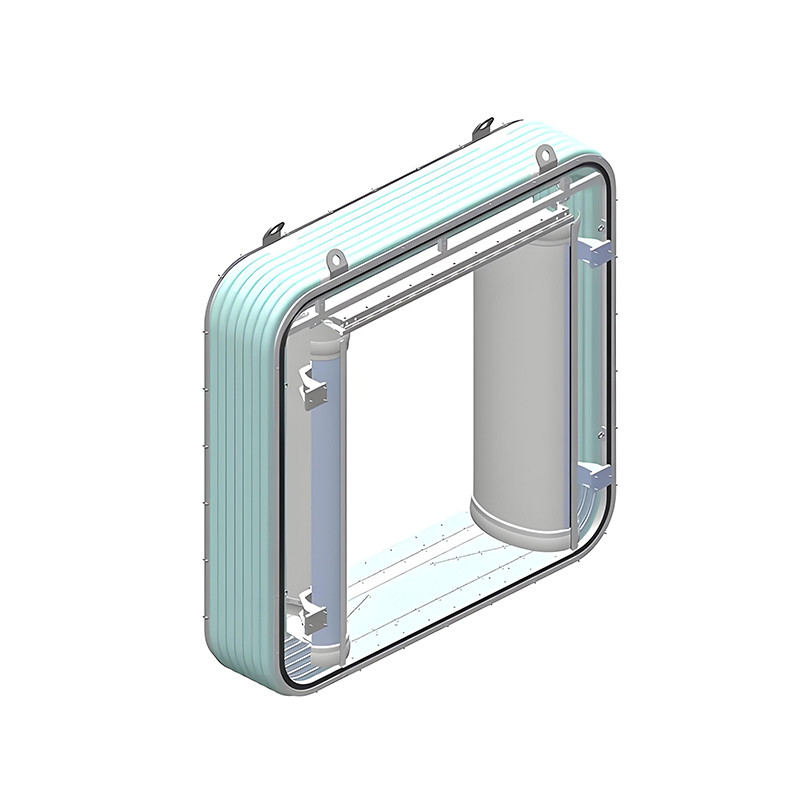

Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels 1
